SOLD $5000 SOLD 2019 - Digitherm Thermal Imaging System IR Pad 640 (never used)
/

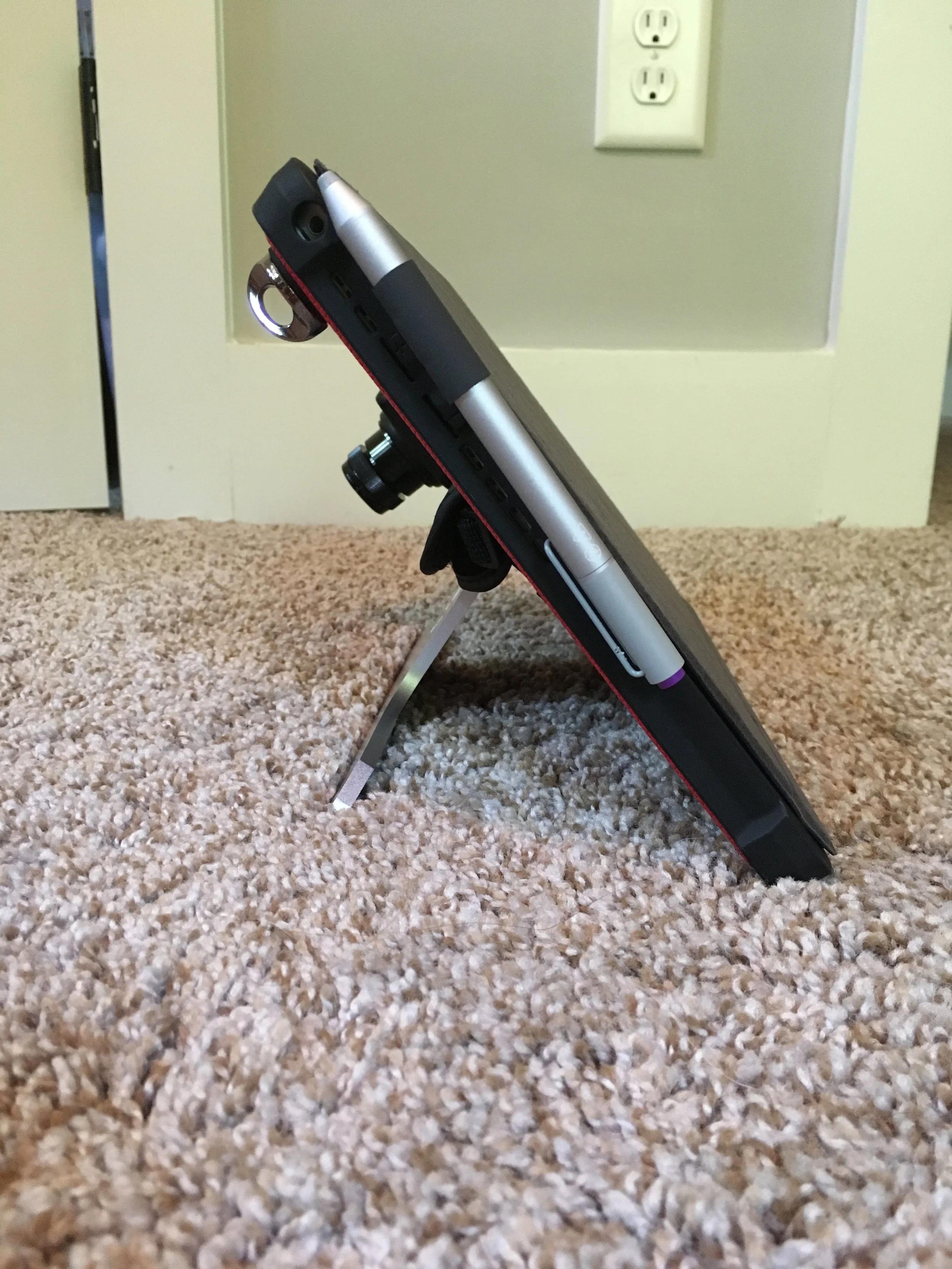

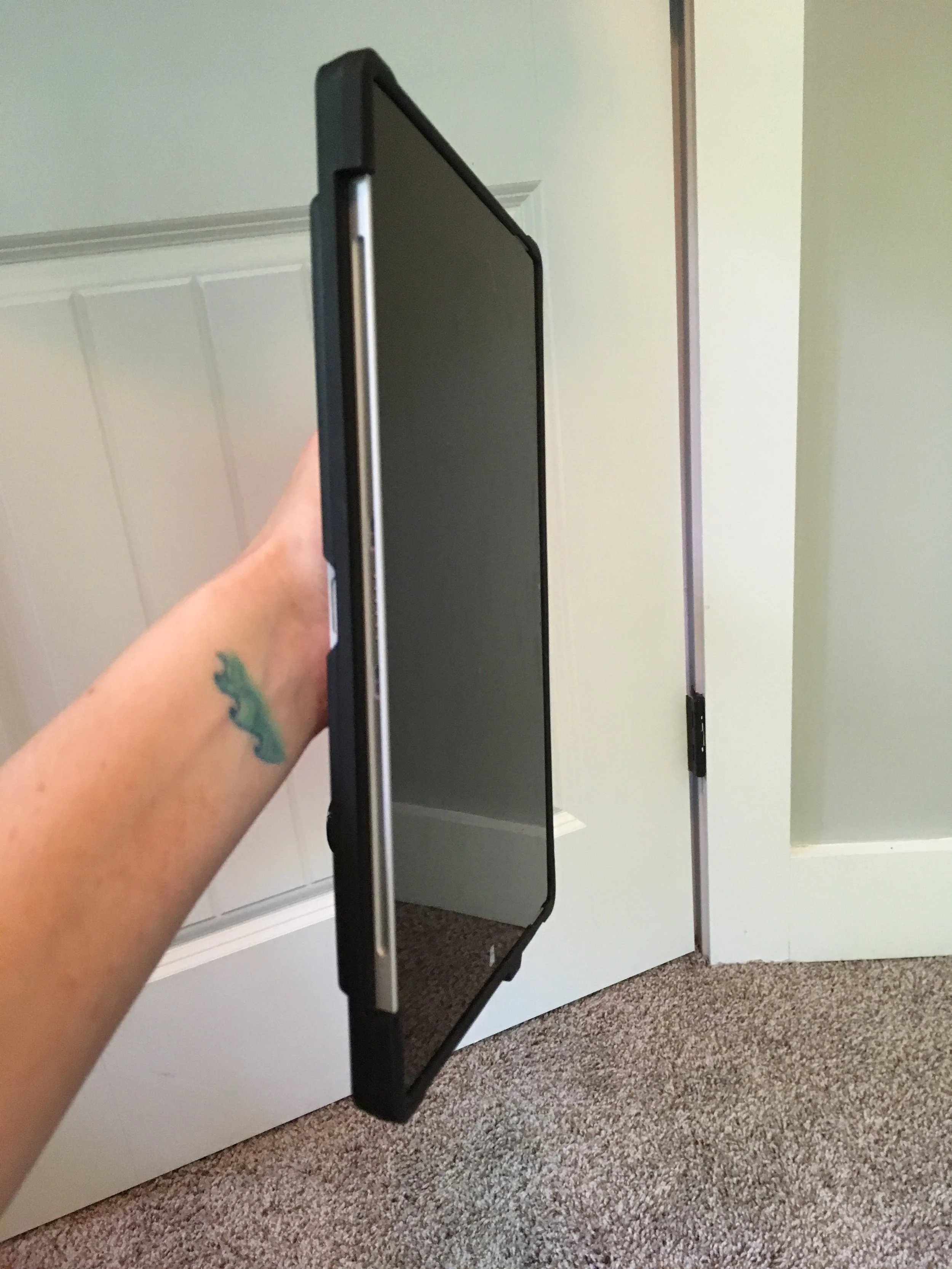

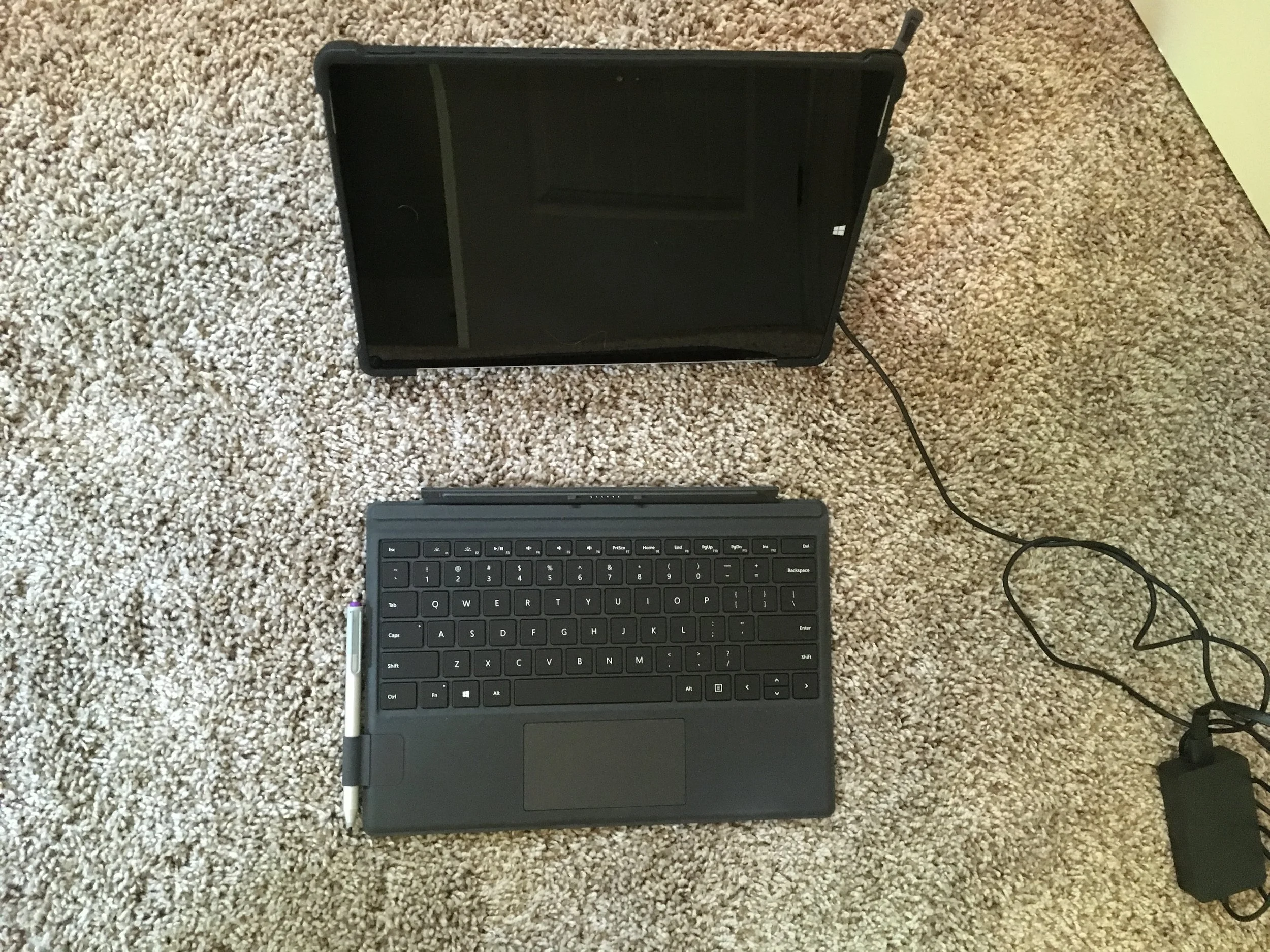

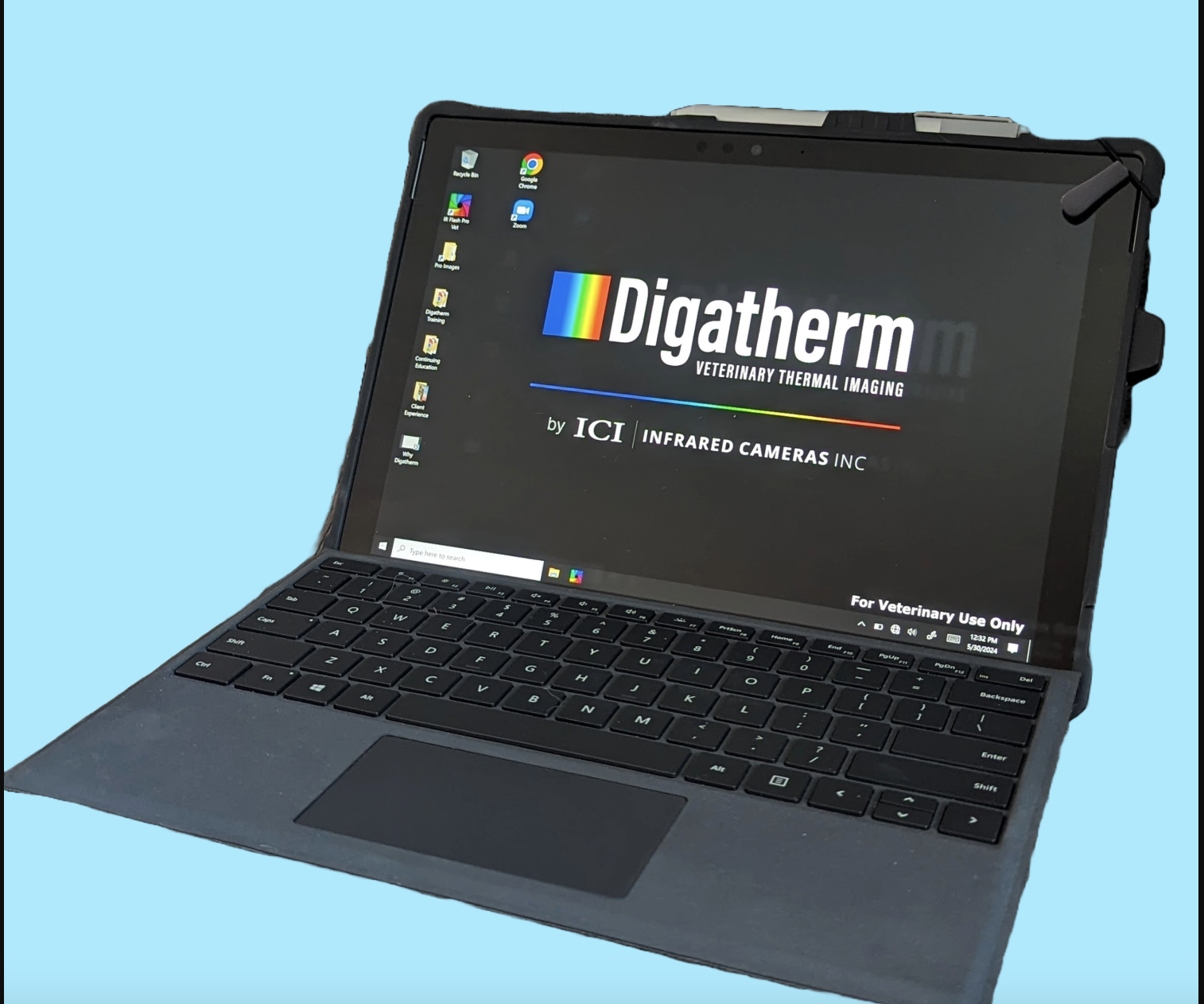

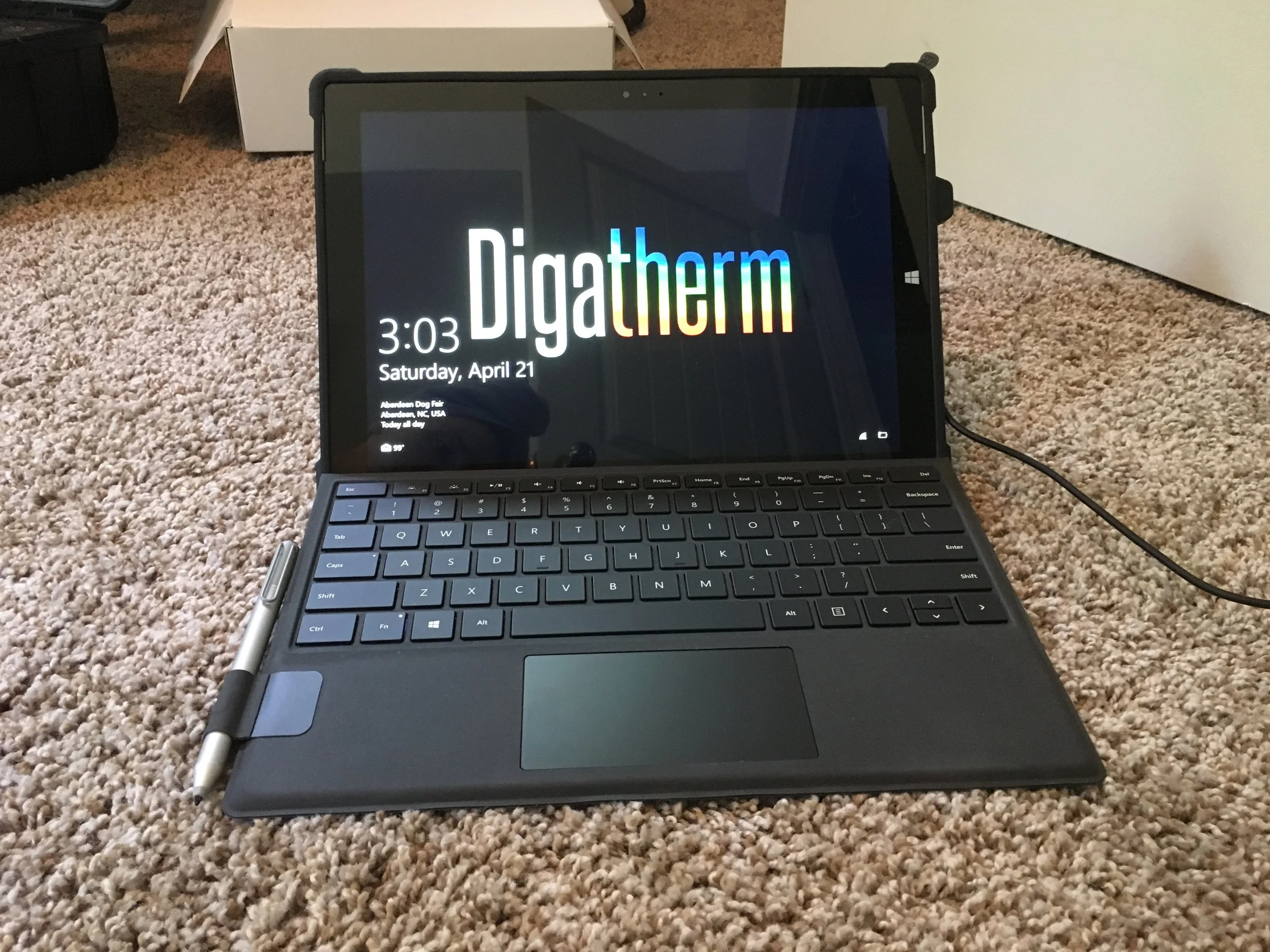

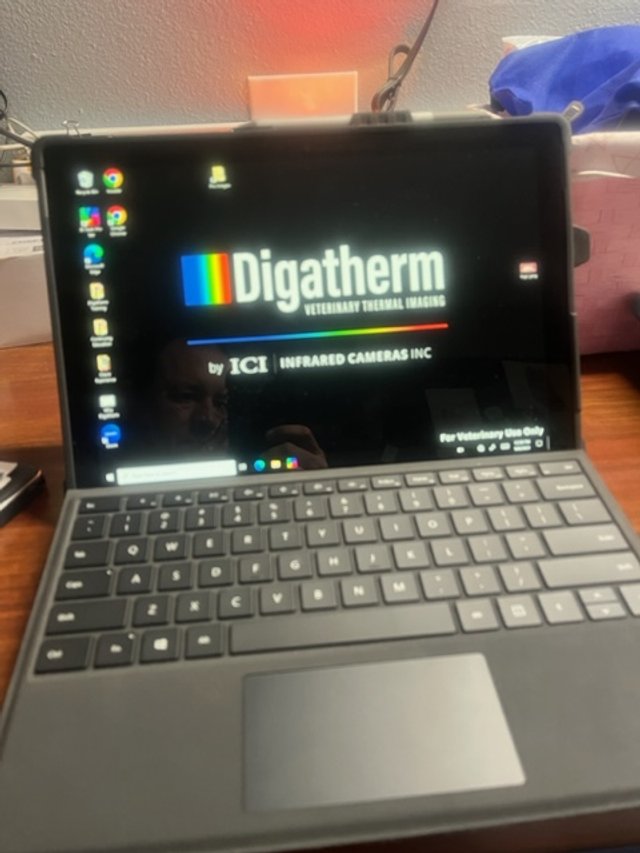

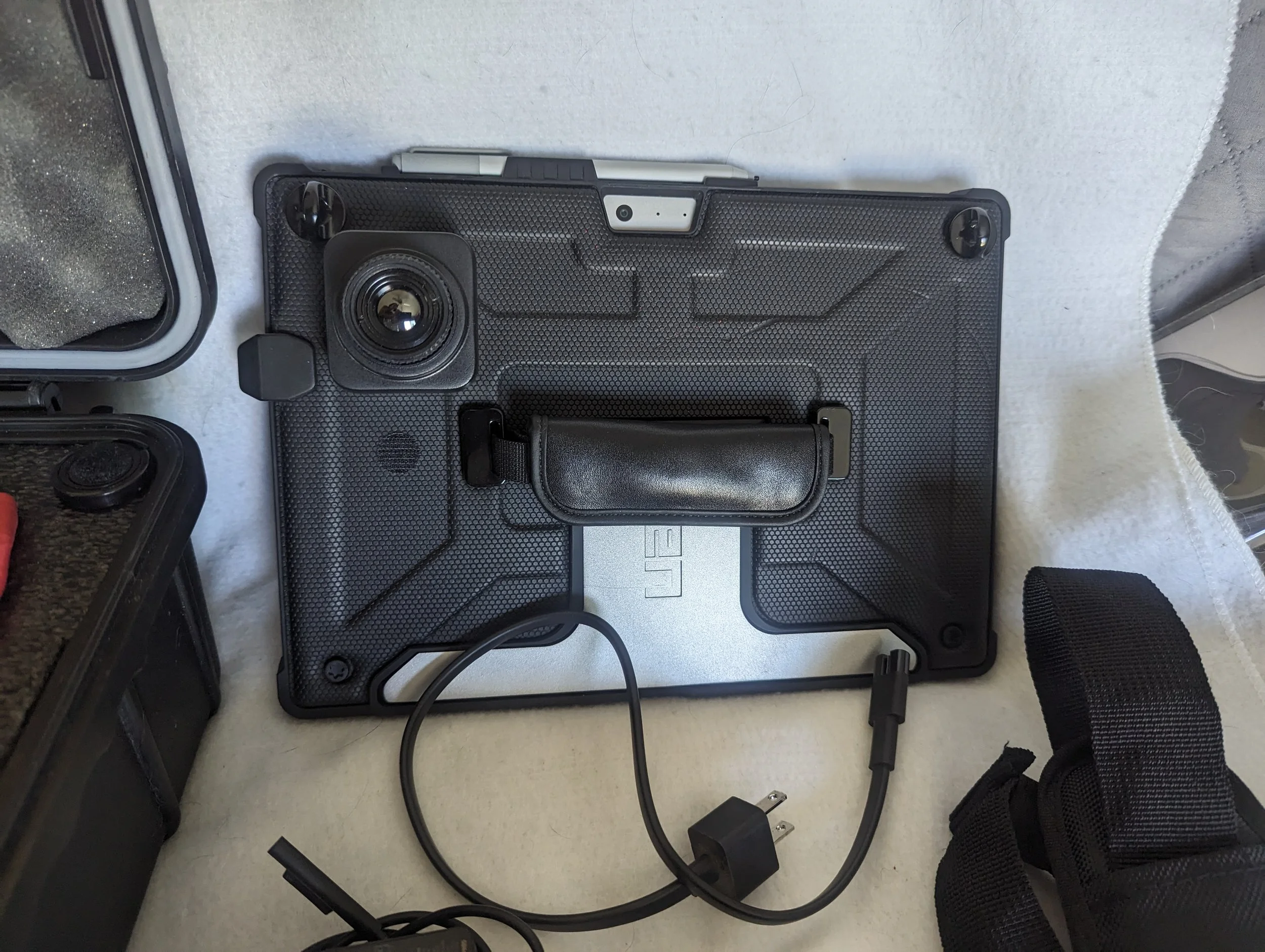

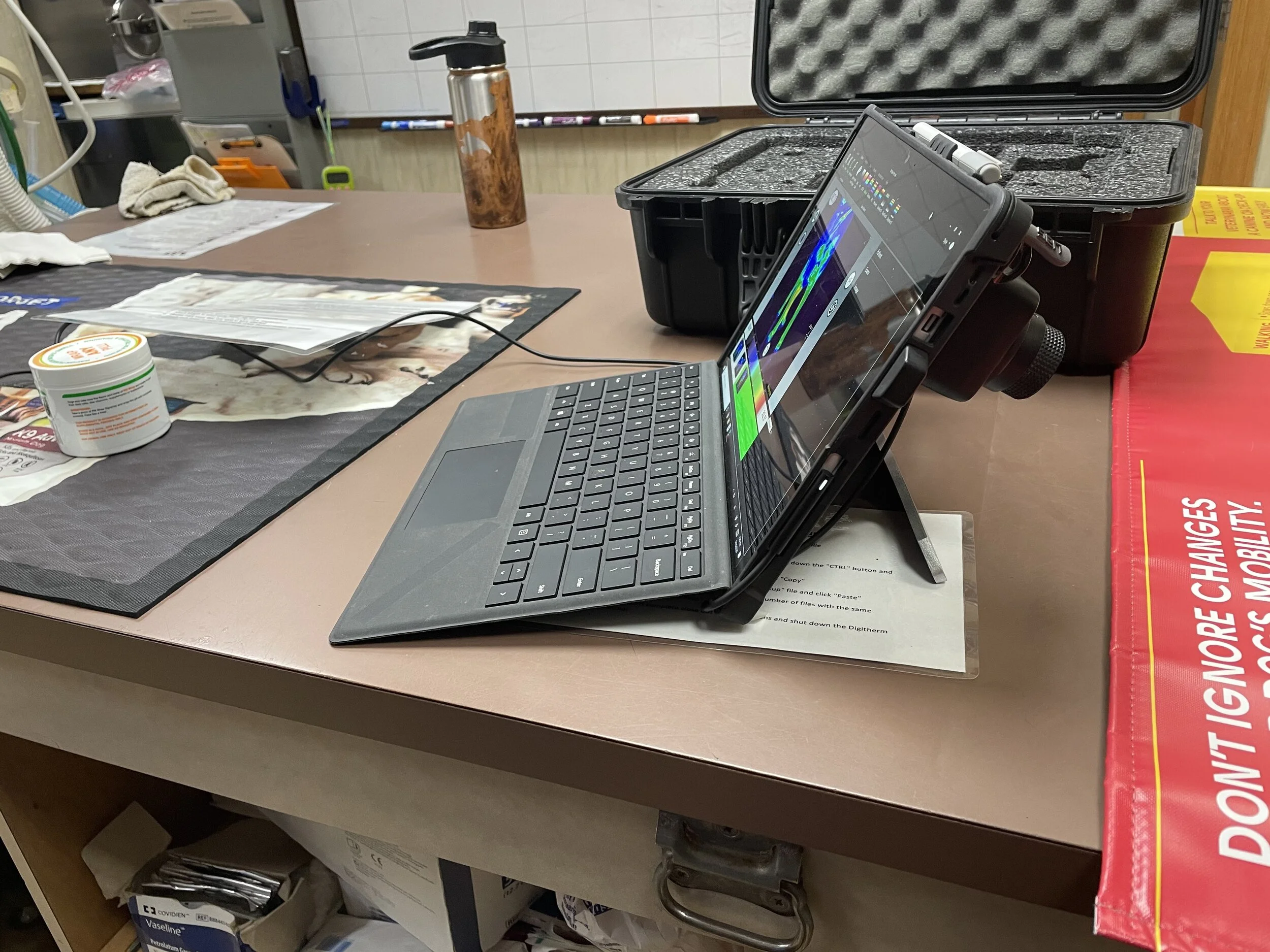

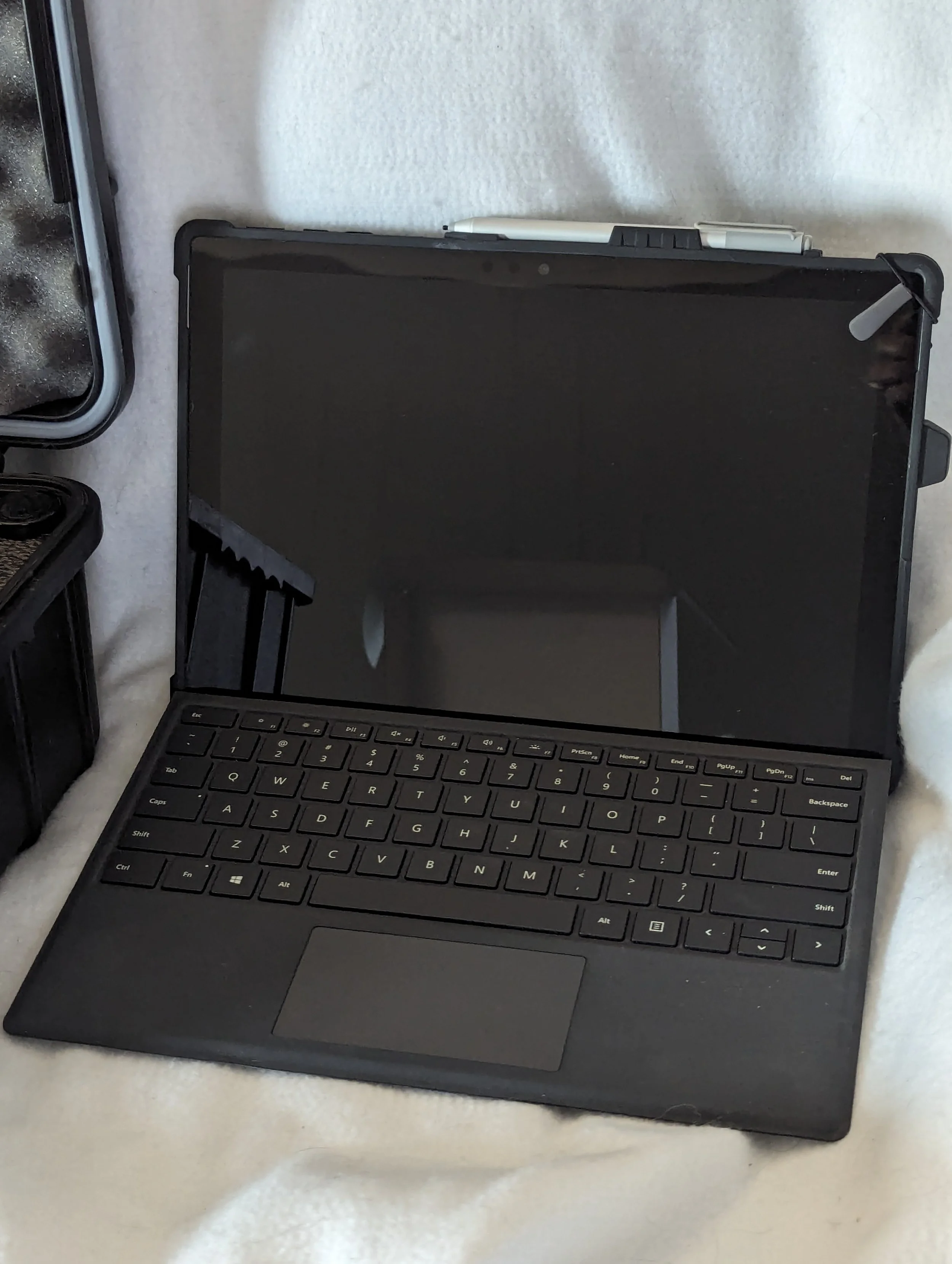

Digitherm Thermal Imaging System IR Pad 640
Manufacture year 2019
Excellent Working Condition
Digitherm
Never used
Dimensions - Width, Length, Height: 12" x 8.5" x 1"
Approx. Weight: 10lbs
Reason for Sale: Not providing this service
Winner of the 2019 IVC Journal Editor’s Choice Innovation Award in Diagnostics from IVCJournal.com

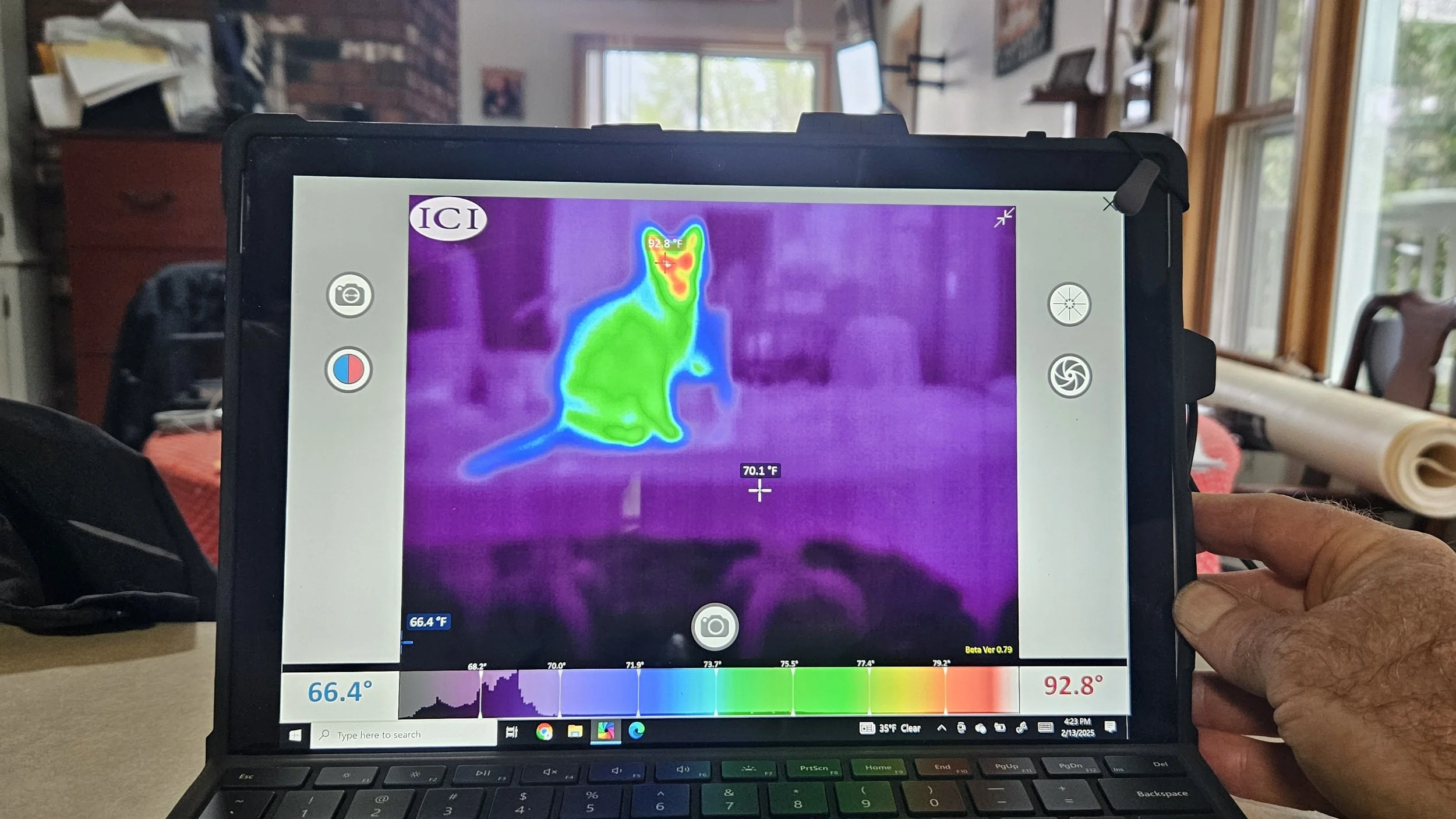

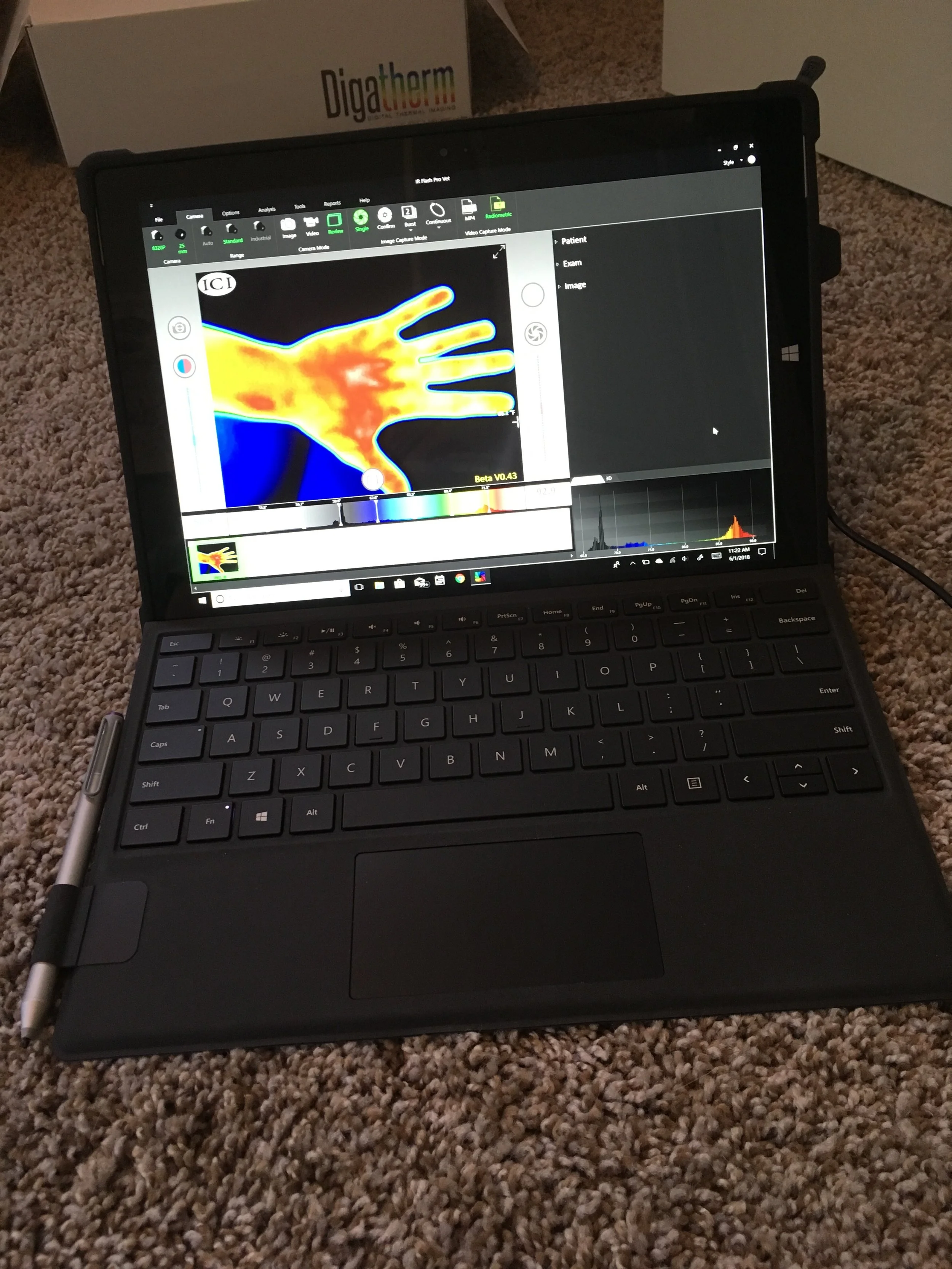

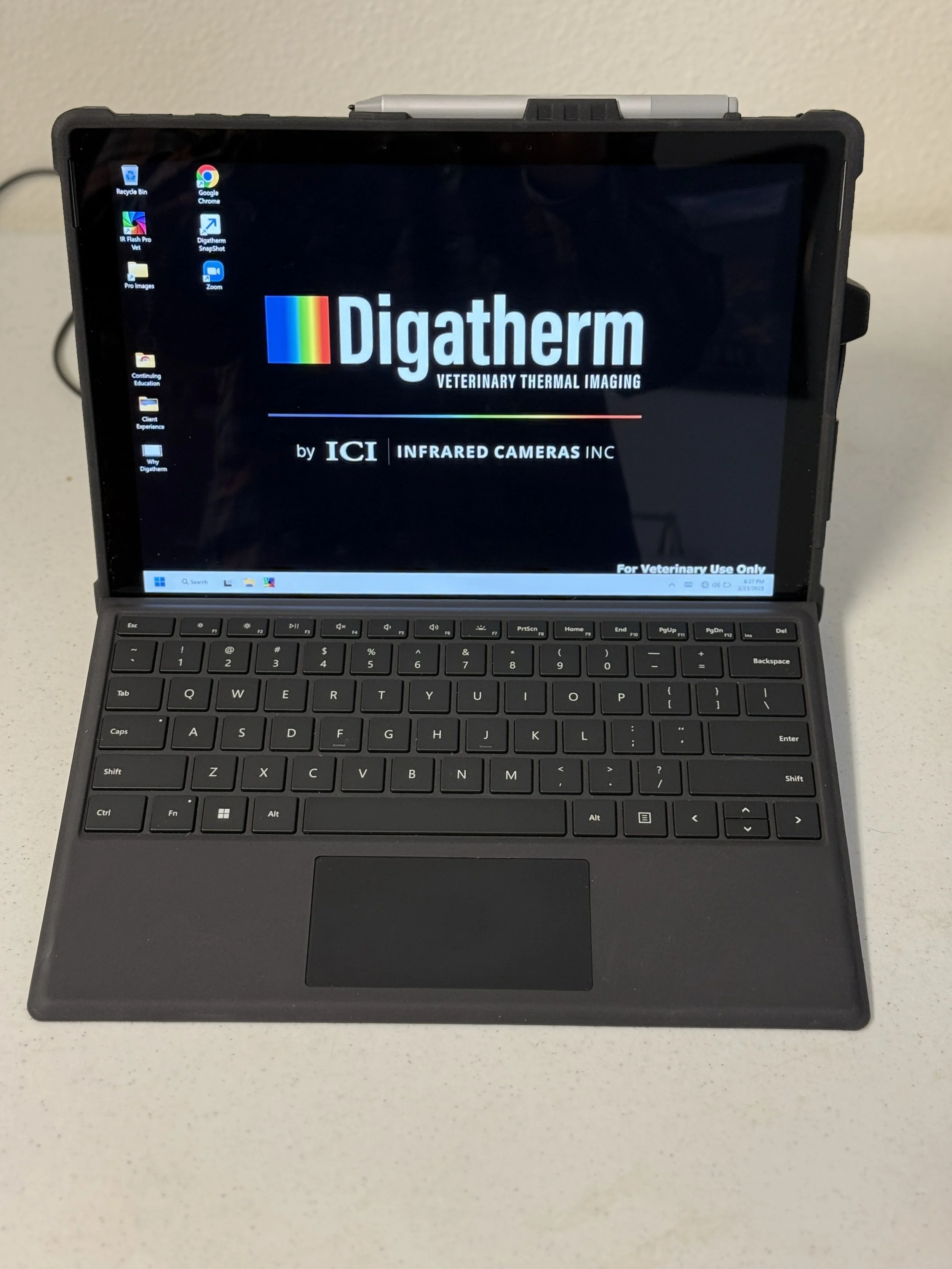

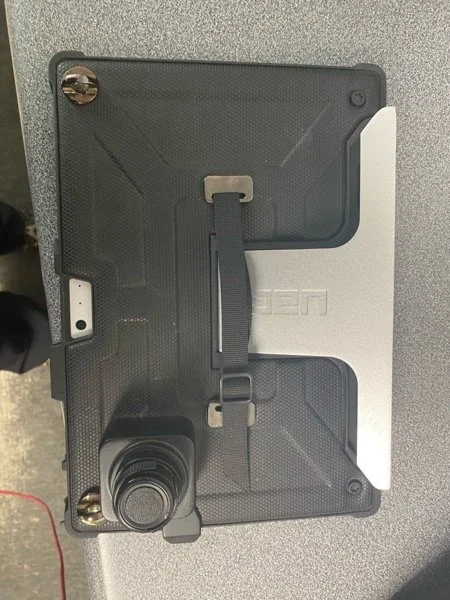

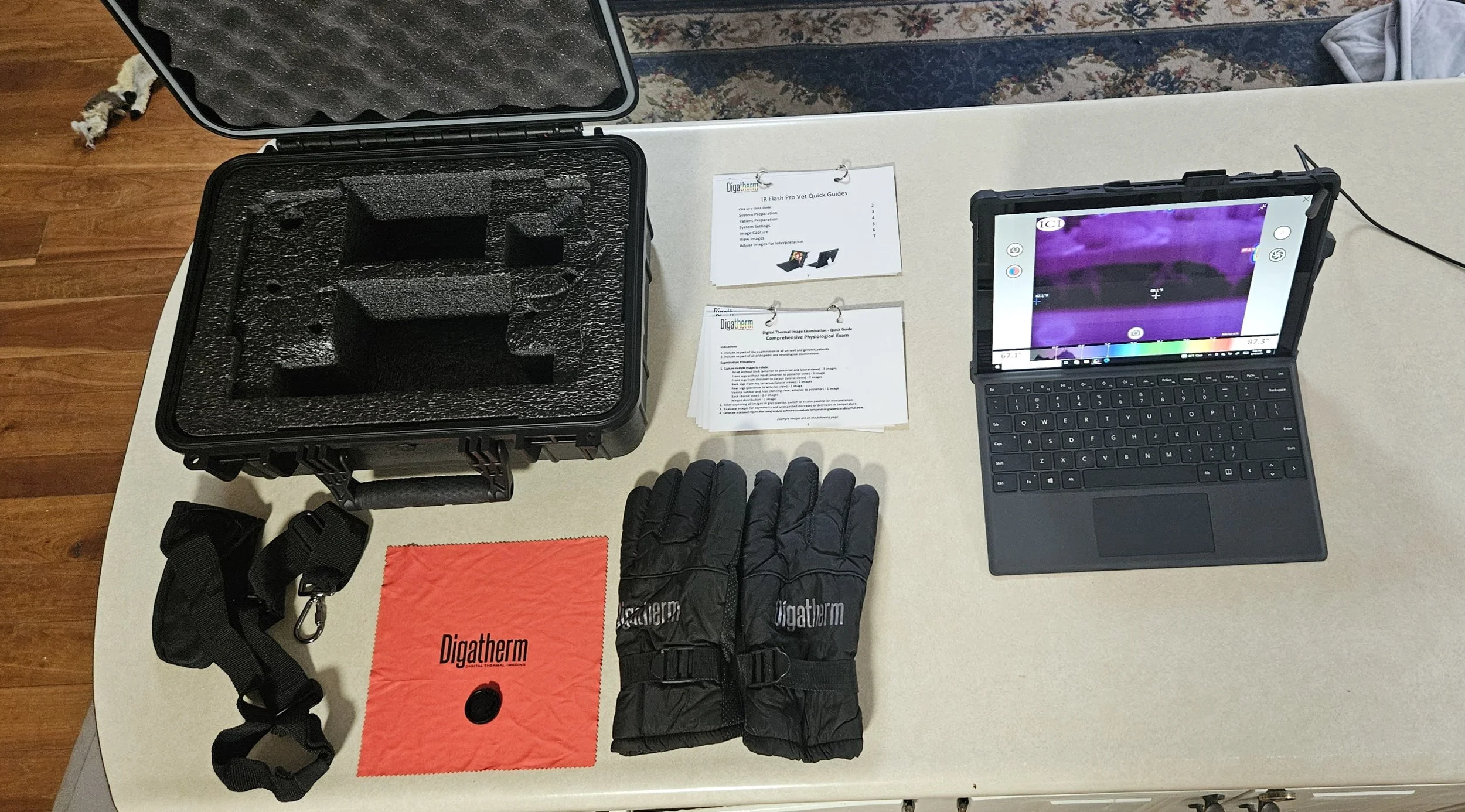

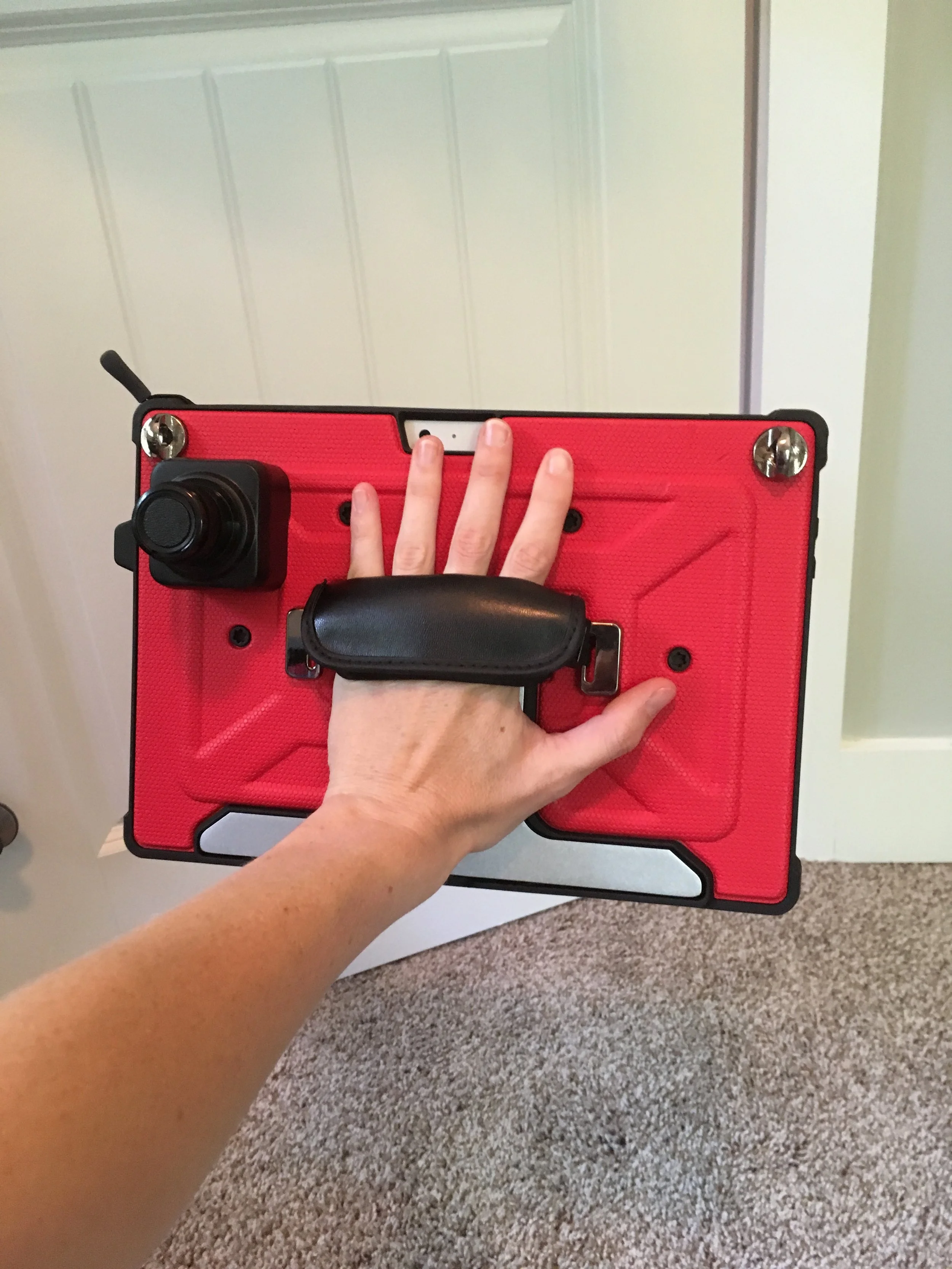

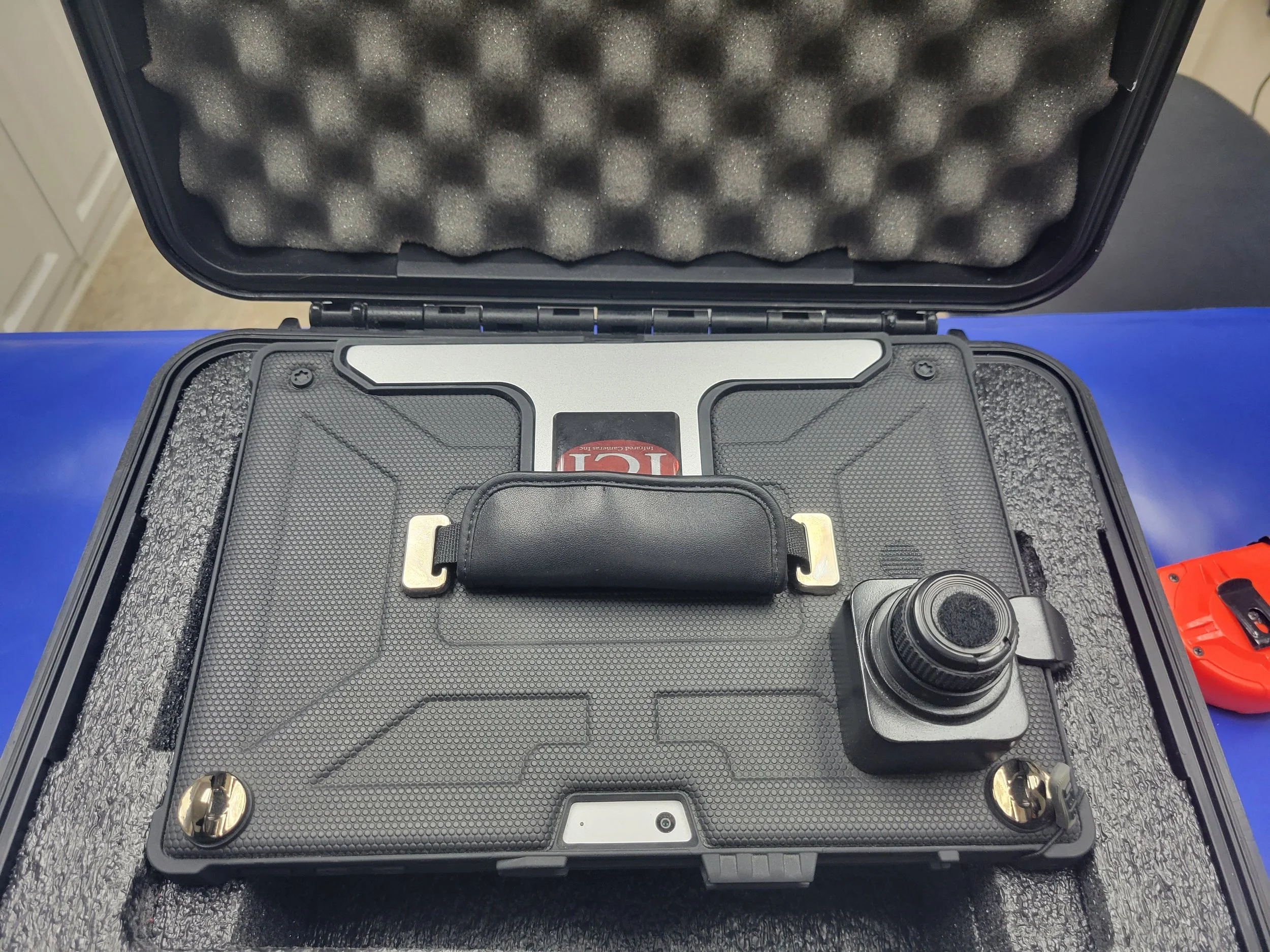

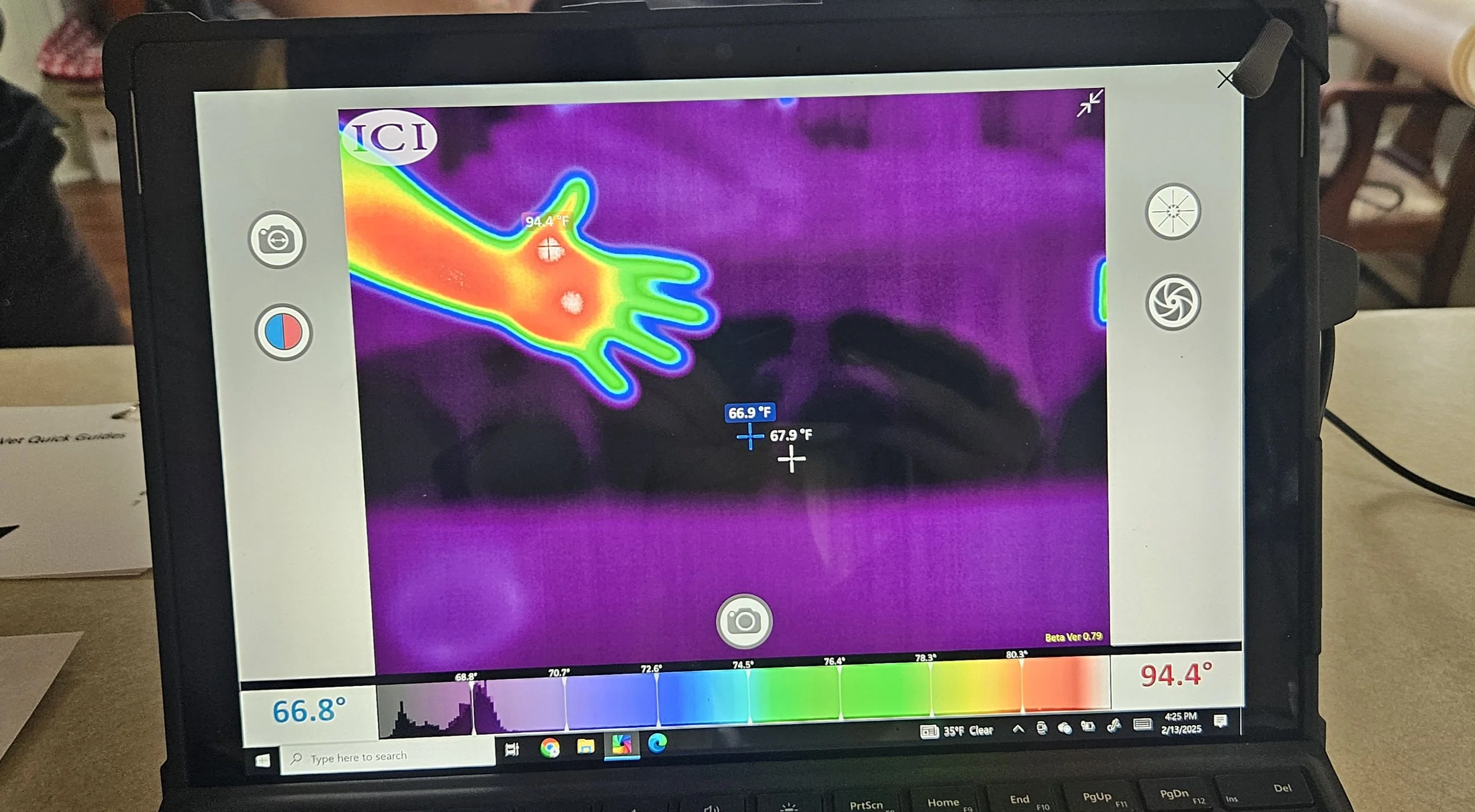

The IR Pad 640 Veterinary | Thermal Infrared Camera / Tablet System is a winning combination for capturing high-quality images
Featuring a custom calibration specifically suited for veterinarian applications, the IR-Pad 640 is useful in preventative and ongoing treatment of animals and pets.

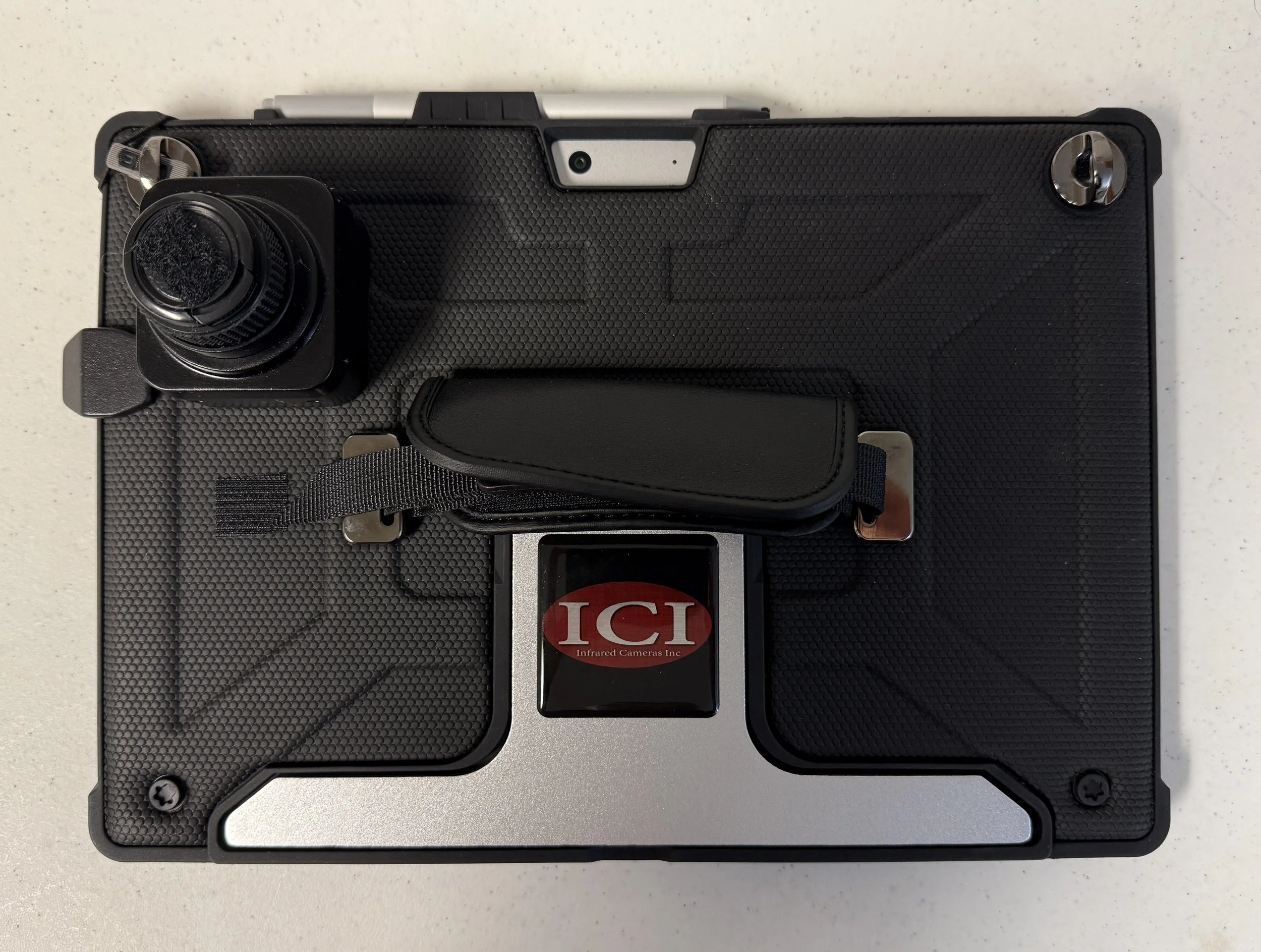

This ultra-rugged infrared camera system utilizes a 640 x 512 high-resolution detector to capture your thermal images, perfect for offices, fieldwork, or house calls.
The design is unbeatable and built specifically for all needs that veterinary thermographers may encounter in their critical business.
Manufacturer's Specifications:
Pixel Resolution: 640 x 512
Accuracy: ± 1 °C (± 1.8 °F) or ± 1%
Temperature Range: -40 °C to 140 °C (-40 °F to 284 °F)
Operation Range: -40 °C to 80 °C (-40 °F to 176 °F)
Storage Range: -40 °C to 70 °C (-40 °F to 158 °F)

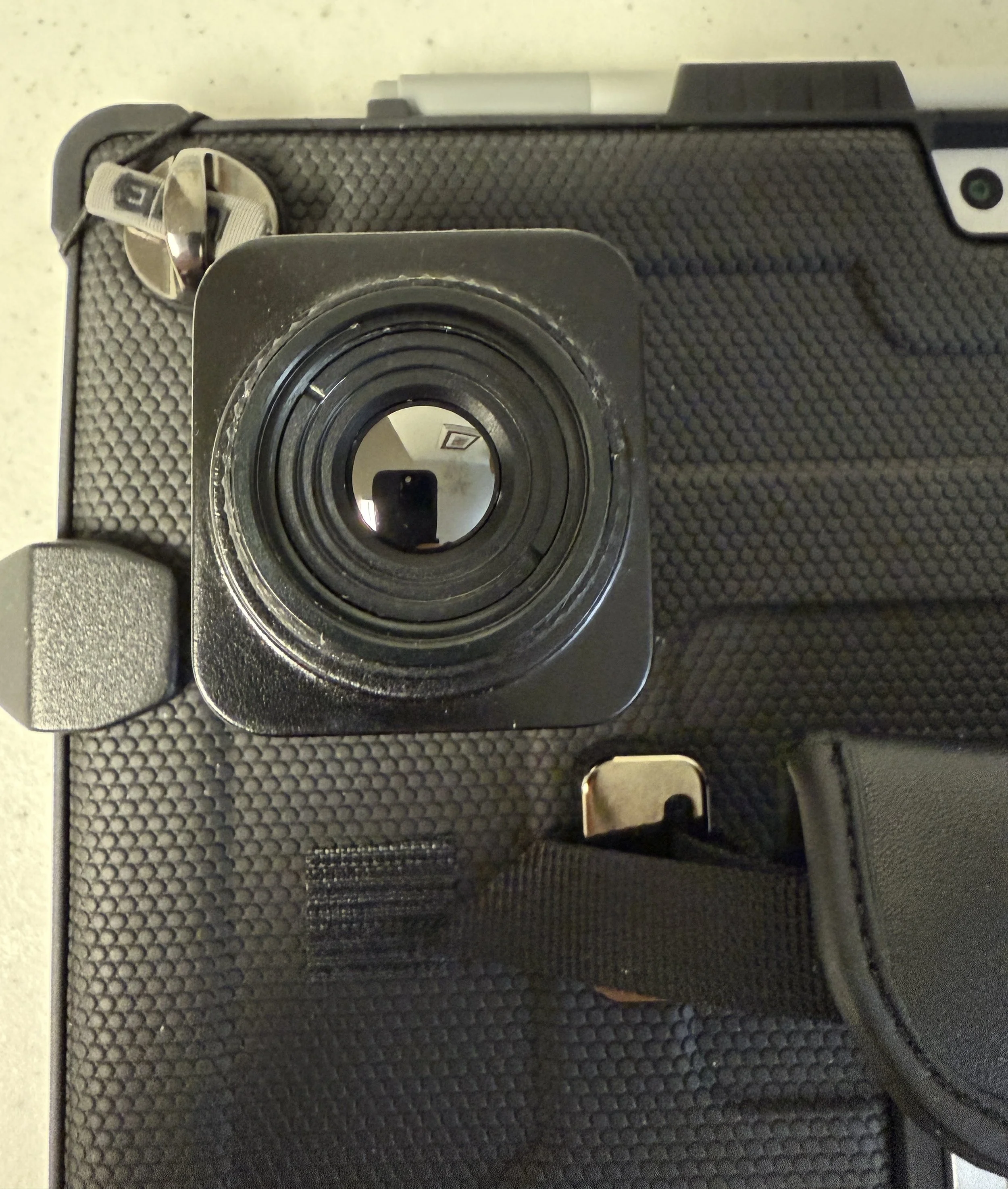

Detector Array: FPA (VOx)
Pixel Pitch: 17 µm
FOV: lens dependent
Measurement Distance: lens dependent
Spectral Band: 7 µm – 14 µm
Thermal Sensitivity (NETD): < (20 mK) 0.02 °C at 30 °C (86 °F)
Frame Rate: 60 Hz P-Series or 7.5 Hz S-Series
Dynamic Range: 14 bit
Humidity: 5% to 95% non-condensing
Pixel Operability: > 99 %
Shock/Vibration:75 G/2 G
Dimensions: 211 mm x 303 mm x 54 mm (L x W x D ± 0.5 mm)
(8.31” x 11.93” x 2.13” (L x W x H ± 0.02”))
Power: 12 V DC 2.58 A, < 36 W
Battery: Lithium battery, built-in, rechargeable
Weight (without lens): 1660 g (3.66 lbs)
Interface: USB 2.0
Video: Radiometric IR and MP4 Visible
Video Format: MP4, 1920 x 1080 @ 30 fps
Video Out: USB-C
Image Format: JPG
Image Polarity: Iron, White Hot, Black Hot, Rainbow, IR11, IR256, Research, Rainbow Percentage
Emissivity Correction: 0.01 to 1.0
IP Rating: IP54
Internal non-uniformity correction (NUC)

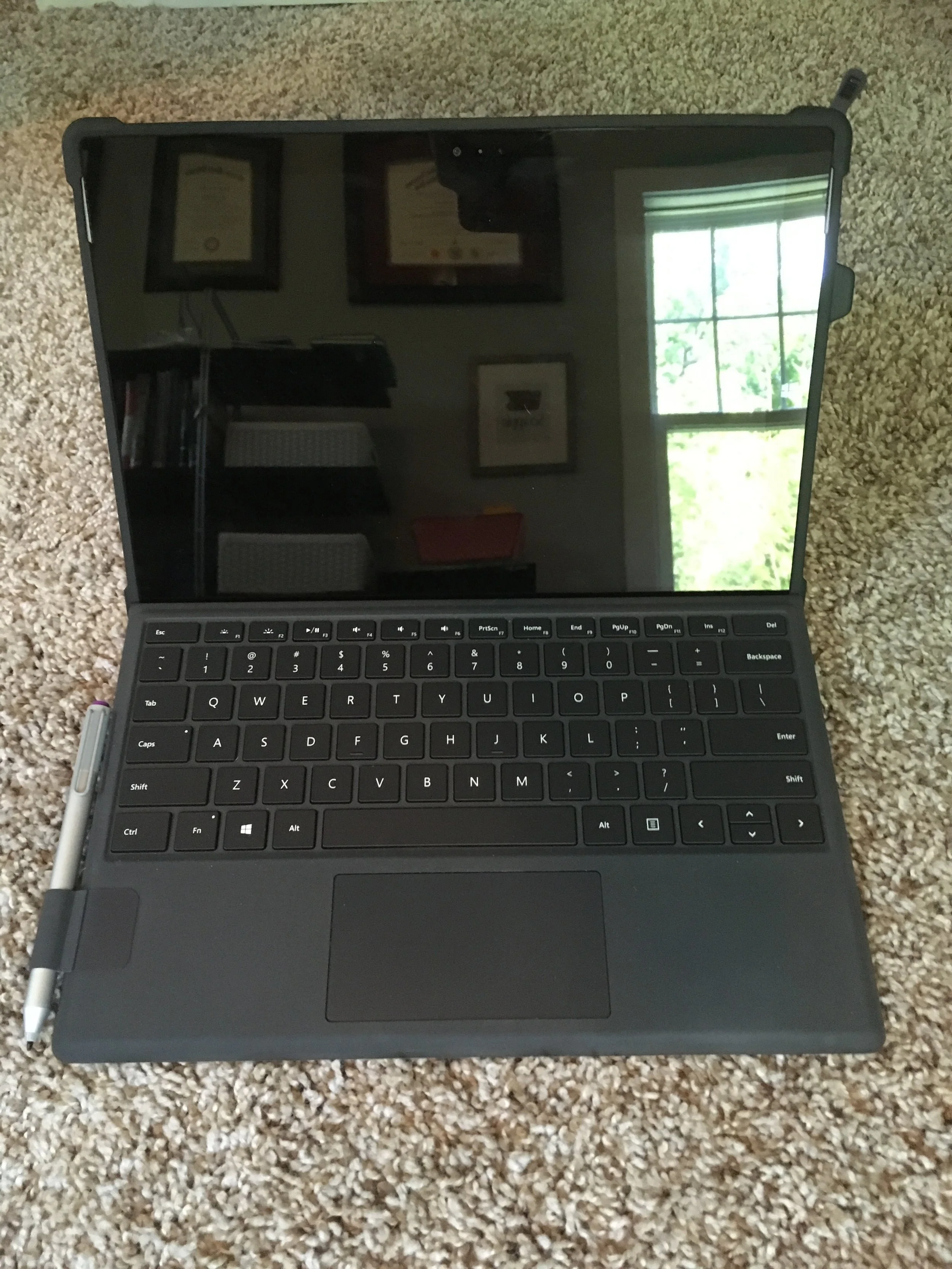

Operating System: Windows 10
Processor: 10th Gen Intel Core i5
Storage: 128 GB
RAM: 8 GB
Screen size: 12.3”
Screen resolution: 2736 x 1824, 3:2
Touch: multi-touch enabled
Visible cameras: rear facing 8 MP at 3264 x 2448, front facing 5 MP at 2560 x 1920
Wi-Fi 802.11ax/ac/n/g/b/a
Bluetooth® Wireless 5.0
Stereo microphone and stereo speakers w/ Dolby™ Audio
Ambient light sensor
Accelerometer, Gyroscope, and Magnetometer
Asking Price $ $8,000
Shipping Options: Shipping is an extra cost
Pricing Options: MAKE OFFER - Open to reasonable offer
State of Seller: Colorado
